Custom shafts represent the backbone of modern industrial machinery, serving as critical components that determine operational efficiency and equipment longevity. In demanding industrial environments, heavy-duty shaft solutions must withstand extreme loads, continuous operation cycles, and harsh working conditions. Unlike standard off-the-shelf alternatives, custom shafts offer precise engineering specifications that align perfectly with unique application requirements, ensuring optimal power transmission and mechanical reliability across diverse industrial sectors.
Introducing Heavy-Duty Shafts and Their Industrial Significance

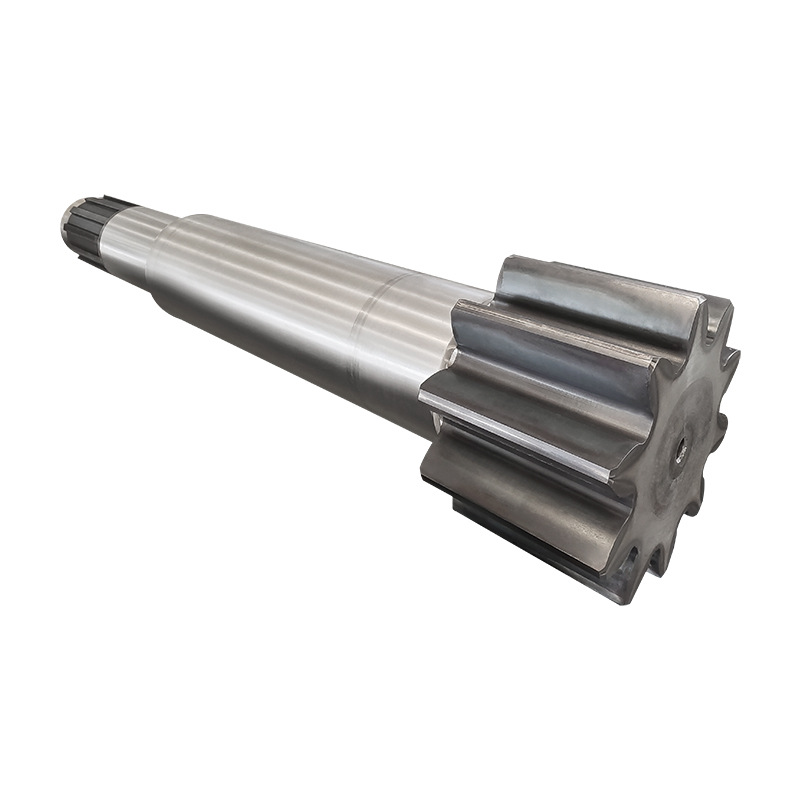

Heavy-duty shafts are important parts of power transmission that are made to handle high mechanical loads while still working precisely. These designed parts are the axis around which spinning machinery turns, sending torque and rotational motion from one mechanical system to another. A heavy-duty shaft is made up of parts that can handle loads that are higher than normal industry standards. These parts usually have to work under constant stress conditions that would damage less durable options.
Core Characteristics and Material Selection
The main things that set heavy-duty shafts apart are their high tensile strength, resistance to wear, and ability to keep their shape under load. The best shaft performance starts with high-quality alloy steel construction, which gives the chemical structure needed for long-term resilience. Modern metalworking methods improve the qualities of materials, making rods that stay strong even in harsh working situations. The choice of material has a direct effect on how well the shaft works in many industry settings.
Alloy steels are stronger for their weight compared to regular carbon steels, and special processes make the surface harder and more resistant to wear. By carefully choosing which alloying elements to use, engineers can make materials that are perfect for tough jobs in mining equipment, big building equipment, and farming tools.
Industrial Applications and Performance Requirements
Light- and heavy-duty shafts are essential for many types of tools used in modern industry. Shafts for mining tools need to be able to hold huge loads and work in rough conditions with lots of dust and debris. Parts of construction equipment need to be able to handle shock loads and changing working conditions without lowering safety or performance standards.
Agricultural equipment has special needs when it comes to shafts that need to be both strong and precise. In these situations, things are usually used only during certain times of the year and then stored for a long time. They need materials and coverings that don’t rust and keep their functional qualities. Because custom shaft solutions are so flexible, engineers can use custom design methods to meet all of these different needs.
Design Principles and Performance Criteria of Custom Heavy-Duty Shafts
Engineers can get the best performance from shafts by customizing their designs to meet the needs of particular operations. The main goals of design are to maximize load capacity while making sure that wear resistance is adequate throughout the operating lifetime of the component. When buying workers understand these concepts, they can make better choices about shaft specs and source capabilities.
Dimensional Considerations and Precision Requirements
Some important physical factors that directly affect performance under load are the shaft’s width, length, and geometric limits. Larger diameter shafts offer better resistance to twisting moments, and figuring out the ideal length stops resonance problems that could cause the part to break too soon. Precision cutting makes sure that measurements are accurate within very small ranges, which stops aligning problems that slow down operations. CNC technology makes it possible to make very accurate shafts with complicated shapes.
Tolerances can be kept within microns by modern machine centers, which makes sure that parts fit and work properly in precise situations. This level of accuracy is especially important in high-speed situations where even small changes in dimensions can cause big problems with how things work.
Heat Treatment and Surface Enhancement Processes
To get the performance qualities that are wanted, heat treatment methods change the properties of materials in basic ways. The chemical structure of alloy steels is changed by controlled heating and cooling processes. This makes it possible to find the best hardness patterns that balance strength and toughness. Surface treatment techniques add more security against wear and rust while keeping the qualities of the core material the same.
When you do precision grinding, you can get surface finishes that lower friction and make bearing contact better. These steps get rid of cutting marks and make the surface smoother, which makes lubricant work better. When combined with the right heat treatment, surface improvement methods make things last longer and need less upkeep.
Comparing Heavy-Duty Shafts: Making Informed Procurement Decisions
To choose the right shaft options, you need to know how the performance of different design methods and material choices varies. For Heavy-Duty Shaft uses, parts need to perform better than the normal specs, while medium-duty and lightweight options are better for different kinds of work. The people who work in procurement need to look at these choices based on the needs of the program and the company’s long-term business goals.
Material Comparison and Performance Metrics
Different types of steel shafts work differently depending on the metal they are made of and how they are treated. It is recommended that standard carbon steels be used for uses with mild loads, while alloy steels work better in harsh conditions. Composite materials have special benefits when they need to be lighter or more resistant to rust. Ultimate tensile strength, yield strength, and wear resistance under cycle loading are some of the performance measures that are used to judge a material. These specs tell you how much weight something can hold and how long it will work in certain circumstances. By understanding these measures, buying teams can choose parts that meet performance needs while also being as cost-effective as possible.
Load Handling and Stress Tolerance Analysis
Stress analysis formulas figure out what size shaft to use for a given load situation. For example, bending moment calculations take into account loads that are spread out and different support setups. Torsional stress analysis, on the other hand, looks at how power needs to be transmitted. For combined loading cases to have enough safety gaps in all working situations, they need to be carefully studied. Because of shock loads, imbalance, or practical changes, real-world working conditions often go beyond what was planned. Good shaft designs include safety features that take these differences into account while keeping the best weight and cost qualities. This method guarantees steady function even when things go wrong.
Maintenance Best Practices to Prolong the Life of Heavy-Duty Shafts
Effective repair plans greatly increase the operating life of shafts while lowering the number of unexpected breakdowns and the costs of downtime that comes with them. A proactive method to repair focuses on finding possible problems early on, before they get worse and need to be fixed completely. Operations teams can get the most out of their shaft purchases when they know how to do proper repair.
Inspection Protocols and Lubrication Management
Visual inspections for surface flaws, numerical readings to find wear patterns, and sound analysis to find alignment problems should all be part of regular inspection plans. These checks show problems that are getting worse and can be fixed with small changes or specific upkeep tasks. Inspection results that are written down make past records that help with strategies for planned repair.
Managing lubrication is a key part of making a shaft last longer, especially at the points where bearings meet and couplings join. When choosing the right lube, it’s important to think about the temperatures, loads, and external factors that can affect how well the grease works. Regular lubrication times keep things running at their best and stop wear from happening too soon.
Common Issues and Preventive Strategies
One of the most common ways that heavy-duty shafts break is through surface wear. This situation slowly gets worse over time because of repeated loading, which causes tiny cracks to appear and then grow into major structural problems. Early discovery through regular checking lets problems be fixed before they get out of hand. Problems with misalignment cause uneven stress patterns that speed up wear and shorten the life of the system. These problems can’t happen because of precise alignment steps taken during installation, and regular alignment checks make sure everything keeps working right. Buying good adjustment tools is worth the money because the parts last longer and upkeep costs go down.
Procuring Custom Heavy-Duty Shafts: A B2B Guide
Successful procurement of custom shaft solutions requires understanding the complex factors that influence pricing, delivery schedules, and quality outcomes. B2B buyers must navigate supplier capabilities, certification requirements, and logistics considerations while maintaining focus on long-term operational goals. Developing comprehensive procurement strategies ensures optimal outcomes for both cost and performance objectives.
Supplier Evaluation and Quality Certifications
Suppliers you can trust show they can make things by having industry certifications and quality control systems in place. Structured quality methods are shown by ISO 9001 certification, while industry-specific licenses show unique knowledge. Supplier site checks give you a straight look at how things are made and how quality is controlled. Material tracking, measurement inspection records, and performance testing documents should all be part of quality standards. These records give you peace of mind that the parts you’re buying meet the standards that were set, and they also help with guarantee claims if problems arise. Suppliers who provide detailed quality paperwork show that they care about their customers and the reliability of their products.
Pricing Models and Delivery Considerations
The price of a custom shaft depends on how much the materials cost, how hard it is to make, and how many are ordered. When buying teams understand these factors, they can make sure that specs are optimized for the most cost-effective options. Strategies for buying in bulk can lower the cost per unit, and using the same patterns for many uses can create economies of scale.
Delivery times rely on how complicated the work is, how readily available the materials are, and how much the provider can handle. Rush orders usually cost more, while planned buying lets providers make the best use of production schedules. When there is a clear conversation about delivery needs, providers can give accurate schedule information and spot any possible delivery risks.
Conclusion
Heavy-duty shafts serve as fundamental components that determine the operational success of industrial machinery across diverse applications. The combination of high-quality alloy steel construction, precision manufacturing processes, and customized design approaches creates solutions that excel in demanding environments. Understanding the principles of shaft design, material selection, and maintenance practices enables procurement professionals to make informed decisions that optimize both performance and cost considerations. As industrial applications continue evolving toward greater efficiency and reliability demands, custom shaft solutions provide the engineering flexibility necessary to meet these challenges while maintaining operational excellence.
FAQ
What advantages do custom shafts offer over standard alternatives?
Custom shafts provide optimized performance through precise dimensional specifications, material selection, and design features tailored to specific applications. This customization eliminates compromises inherent in standard components, resulting in improved efficiency, extended operational life, and reduced maintenance requirements.
How can I verify that a selected shaft meets my application requirements?
Specification verification involves reviewing material certifications, dimensional inspection reports, and performance testing documentation. Reputable suppliers provide comprehensive technical data packages that demonstrate compliance with specified requirements. Engineering consultation services help validate design approaches for specific applications.
What are typical lead times for custom shaft orders?
Lead times vary based on design complexity, material requirements, and supplier capacity. Standard custom designs typically require 4-6 weeks, while complex geometries or specialized materials may extend timelines to 8-12 weeks. Planning procurement activities around these timelines prevents production delays.
Partner with HUAN-TAI for Superior Custom Shaft Solutions
A company called HUAN-TAI has been making unique heavy-duty shaft solutions for tough industry uses for 30 years. Our advanced CNC cutting skills, along with precise heat treatment and surface improvement methods, allow us to make parts that work better than expected. As a reputable heavy-duty shaft provider, we know how important it is for industrial uses to have accurate measurements and high-quality materials. Our tech team works closely with customers to come up with the best solutions for mining equipment, building equipment, and farming tools. Contact our specialists at inquiry@huan-tai.org to discuss your custom shaft requirements and experience the reliability that has made HUAN-TAI a preferred partner for industrial manufacturers worldwide.
